2627КТ025
TS number
АЕНВ.431160.666ТУ
Coating
nickel
Case type

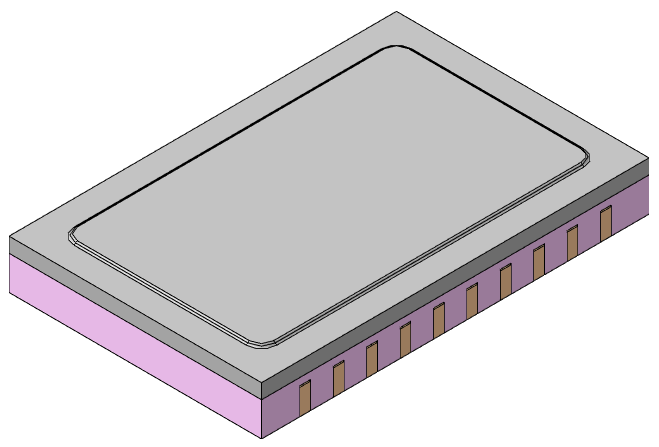

ЯЛГК.301176.298
Price on demand
- Technical characteristics
2627КТ025 microcircuit assembly consists off our digital CMOS channels with output stages implemented on powerful high-voltage n-channel MOS transistors. Each channel has in-built overcurrent protection with trigger threshold at a typical level 2A. It is used in equipment. Functional purpose is a current switch.
Main electrical parameters
| Parameter name, unit of measurement | Parametersymbol | Standard | |||
| Maximum permissible mode | Maximum permissible mode | ||||
| at least | at least | at least | at least | ||
| 1. Supply voltage, V | UC1 | 4,75 | 5,25 | – 0,2 1) | 7,0 |
| 2.DC supplyvoltage, V | UC2 | 7,0 | 30,0 | – 0,2 1) | 35,0 |
| 3. Pulse voltage amplitude at output stages, V | UC2.P | 0 | 80,0 2) | 0 | 90,0 2) |
| 3. High level input voltage, V | U1I | 0,8 UC1 | UC1 | – | 7,0 |
| 4. Low level input voltage, V | U0I | 0 | 0,2UC1 | – 0,2 1) | – |
| 1)Mode time is no more than 100 ms; 2)Mode time is no more than 5 µs, pulse ratio is no less than 1000. | |||||
