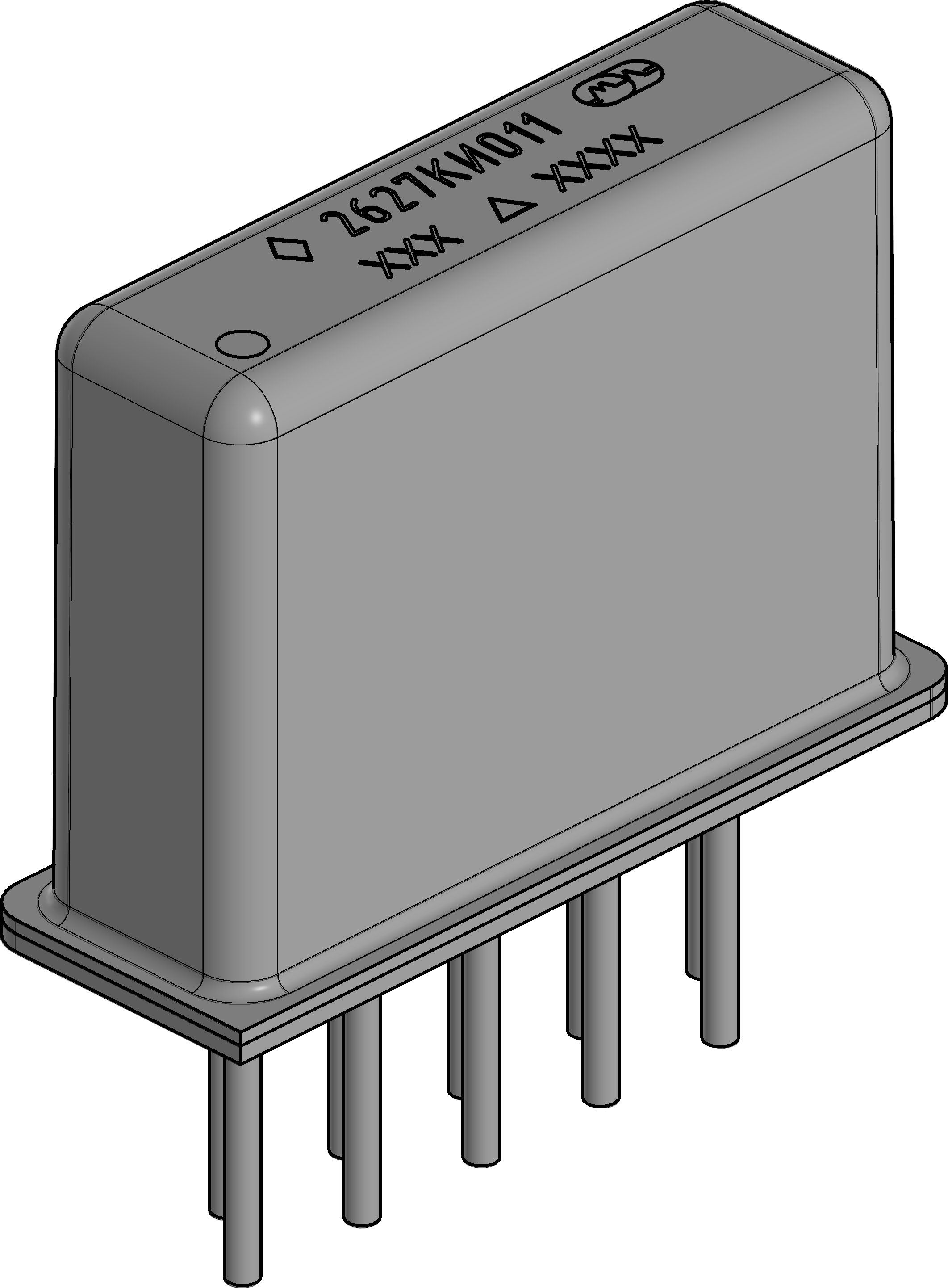

2627КИ011
TS number
АЕНВ.431160.792ТУ
Completion date
2023
Price on demand
- Technical characteristics
The assembly is designed for switching currents at active and inductive loads with short circuit protection in a load circuit with galvanic isolation.
Main electrical parameters
| Parameter (mode) name, unit of measurement | Parameter symbol | Maximum permissible mode | Limiting mode | Note | ||
| at least | at most | at least | at most | |||
| 1. Supply voltage, V | UC | 18,0 | 36,0 | 16,0 | 43,0 | 1,2 |
| 2. Output power, W | PO | – | 95,0 | – | 105,0 | 1, 2 |
| 3. Low-level input voltage, V | UIL | 0 | 0,4 | 0 | 0,5 | 1, 2 |
| 4. High-level input voltage, V | UIH | 0 | 5,5 | 0 | 6,0 | 1,2 |
