МК2628 (provisional designation)
TS number
In progress
Coating
gold
Case type

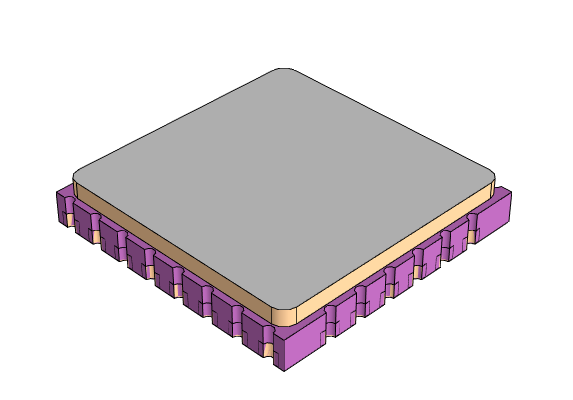

QLCC 17/28
Completion date
2023
Price on demand
- Technical characteristics
The microcircuit is designed to generate demagnetization and magnetization currents of two double-winding ferrite phase shifters with a current sensor actuation at 2.5 A.
Main electrical parameters
| Parameter (mode) name, unit of measurement | Parameter symbol | Maximum permissible mode | Limiting mode | Note | ||
| at least | at most | at least | at most | |||
| Supply voltage, V | UDD | 4,5 | 5,5 | –0,3 | 7 | 1 |
| Low-level input voltage, V | UIL | 0 | 0,8 | –0,3 | – | 1 |
| High-level input voltage, V | UIH | 2,0 | UDD | – | UDD+0,3 | 1 |
| Pulse current at terminals L, A | IL | – | 5 | – | 8 | 2, 4 |
| LIM output voltage, V | ULIM | 0 | UDD | –0,3 | UDD+0,3 | 1 |
| LIM output load resistance, kOhm | RLIM | 1 | – | 0,8 | – | |
| Maximum power dissipation, W | P | – | 1,5 | – | 2 | 4 |
